Vanguard Flagpole: Internal Halyard

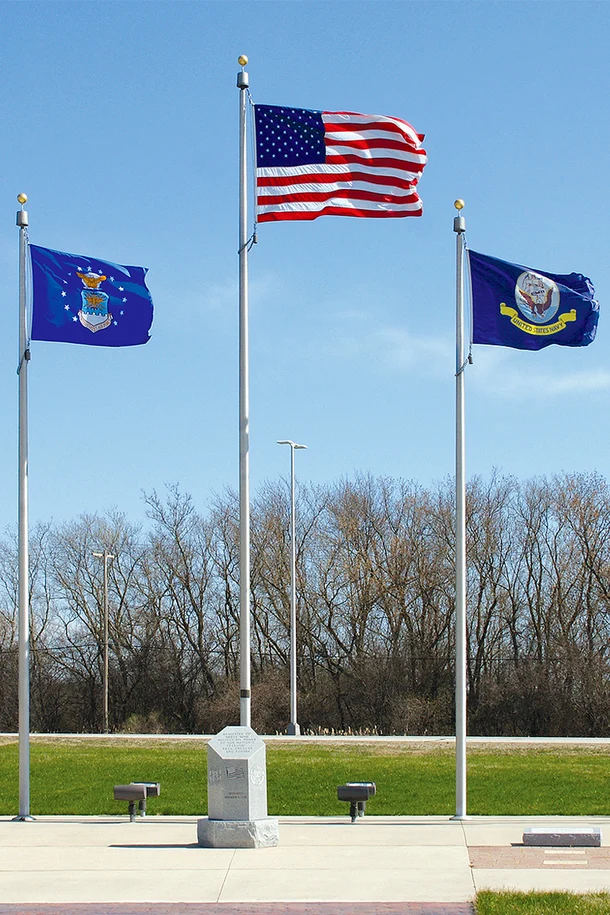

Vanguard Internal Halyard Flagpole

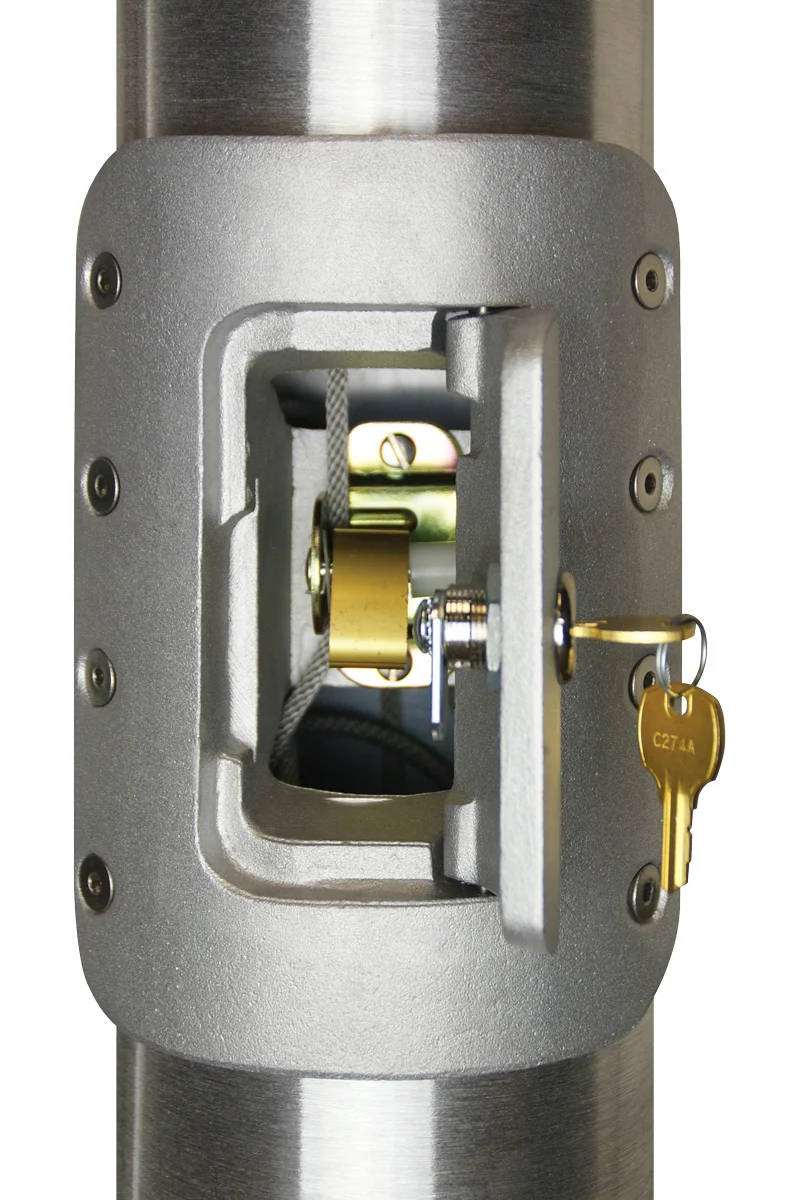

Internal Halyard Cam

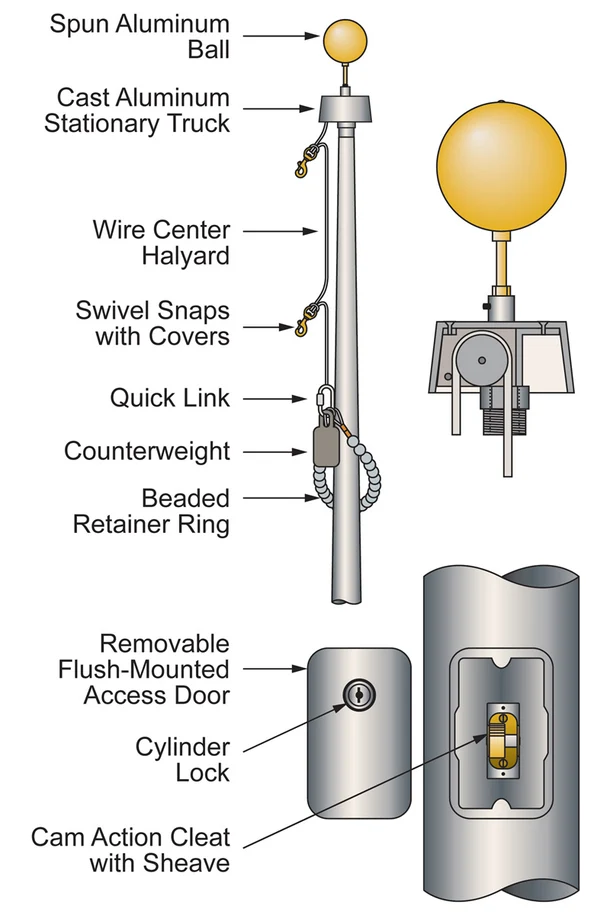

Vanguard IH Illustration
Flagpole Finishes
Roll over image to zoom in
Click to open expanded view

Price range: $2,440.00 through $8,928.00

The VANGUARD IH SERIES provides an economical alternative to the deluxe internal halyard systems.

Standard Accessories


  • Gold anodized aluminum ball ornament
  • Cast aluminum revolving truck on all flagpole models
  • Nylon wire center halyard
  • Swivel flag snaps w/vinyl snap covers
  • Retainer ring and counterweight
  • Stainless steel quick link
  • Cam action cleat (accessible behind a lockable access door)
  • Spun aluminum flash collar
  • Galvanized steel foundation sleeve


* See complete specifications of the flagpole below.

Clear
SKU: N/A Categories: , Brand:


VANGUARD SERIES FLAGPOLE SPECIFICATIONS


FLAGPOLE
HEIGHT
20′
20′
25′
25′
25′
MODEL
ECXV20
ECV20
ECXV25
ECXAV25
ECV25
OVERALL LENGTH
23′
23′
27′
27′
27′
# OF SECTIONS
1
1
1
1
1
BUTT DIAMETER
5″
5″
5″
5″
6″
TOP DIAMETER
3″
3″
3″
3″
3.5″
WALL THICKNESS
.125
.188
.125
.156
.188
UNFLAGGED MAX
WIND SPEED
250 mph
315 mph
144 mph
192 mph
222 mph
FLAGGED MAX
WIND SPEED
120+ mph
120+ mph
104+ mph
117 mph
120 mph
FLAG SIZE
3′ X 5′
3′ X 5′
4′ X 6′
4′ X 6′
4′ X 6′
SHIPPING
WEIGHT
129 lbs
142 lbs
139 lbs
152 lbs
197 lbs
FLAGPOLE
HEIGHT
30′
30′
30′
30′
30′
MODEL
ECXAV30
ECLV30
ECAV30
ECV30
OVERALL LENGTH
33′
33′
33′
33′
# OF SECTIONS
1 or 2
1
1
1
BUTT DIAMETER
5″
5″
6″
6″
TOP DIAMETER
3″
3″
3.5″
3.5″
WALL THICKNESS
.156
.188
.156
.188
UNFLAGGED MAX
WIND SPEED
119 mph
127 mph
184 mph
211 mph
FLAGGED MAX
WIND SPEED
91 mph
96 mph
117 mph
120+mph
FLAG SIZE
5’x8′
5′ X 8′
5′ X 8′
5′ X 8′
SHIPPING
WEIGHT

185 lbs
185 lbs
224 lbs
227 lbs
FLAGPOLE
HEIGHT
35′
35′
35′
40′
40′
MODEL
ECAV35
ECXV35
ECV35
ECXV40
ECV40
OVERALL LENGTH
38.5′
38.5′
38.5′
44′
44′
# OF SECTIONS
1
1
1
2
2
BUTT DIAMETER
7″
6″
7″
7″
8″
TOP DIAMETER
3.5″
3.5″
3.5″
3.5″
3.5″
WALL THICKNESS
.156
.156
.188
.156
.188
UNFLAGGED MAX
WIND SPEED
179 mph
122 mph
200 mph
125 mph
195 mph
FLAGGED MAX
WIND SPEED
117 mph
91 mph
120 mph
91 mph
120 mph
FLAG SIZE
6′ X 10′
6′ X 10′
6′ X 10′
8′ X 12′
8′ X 12′
SHIPPING
WEIGHT
261 lbs
247 lbs
261 lbs
294 lbs
319 lbs
*All flagpole models marked with an asterisk (*) are now available in both one and two section styles; please specify when placing your order. If not specified, one section poles will be shipped. Add 10% to the pricing for two section style flagpoles.
